plug drilling jig

[Rockfish9]

this should help..

[shark lobster]

now that is cool also having issues with thru drilling ,,, bit walking thru the side or whatever , or wereever it wants to go

[jlnel]

i like that bit in pic three.. what kind is that? so the jig will hold plug level - how do you figure 90 degree, just eyeball?? /

Originally Posted by Rockfish9

this should help..

[Rockfish9]

Originally Posted by jlnel

i like that bit in pic three.. what kind is that? so the jig will hold plug level - how do you figure 90 degree, just eyeball?? /

That is a step drill....

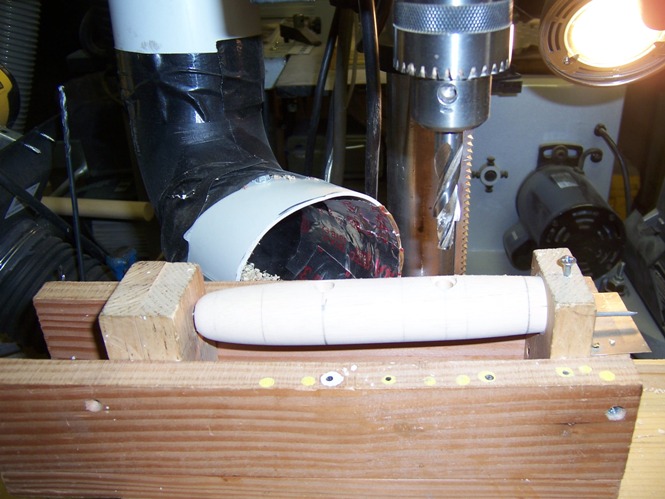

The jig can take lipsless or plugs with a lip... if using it with a plug that has a lip, the head stock is flipped ( held in place by two screws) the lip slot slides on a piece of thin sheet metal.. and a pin goesin the through hole.. the tail stock pin holds the rear.. when using it for darters (like in the picture) it is reversed and a screw inserted in the plug to hold it fast.... the jig was made so the tail stock and lip slot ( or screw) are peerpendicular... a wooden fence on the drill press is set to the correct depth... it is a simple matter of lining up the mark on the belly and the drill to drill the holes....
