| Plug Building - Got Wood? Got Plug? |
 |
12-06-2009, 09:42 AM
|
#1
|
|
Hydro Orientated Lures
Join Date: Oct 2002
Location: Brockton,Ma
Posts: 8,484
|
that is very strange ... the placement of the weight below the thru wire ..
|
|
|
|
|
|
12-06-2009, 09:50 AM
|
#2
|
|
Registered User
Join Date: Dec 2004
Location: North Fork
Posts: 2,260
|
Quote:
Originally Posted by Tagger
that is very strange ... the placement of the weight below the thru wire ..
|
Yes you are right that must of been a pain to drill as you need a big hole and then either fill or just cap it.I would guess is to lower the center of gravity to not get as much roll. |
Originally Posted by Flaptail
"Throw plugs like we do that will cause them to suffer humility. Pogies make any fisherman look good when bass are around. Bait is easy."
|
|
|
|
|
12-06-2009, 09:58 AM
|
#3
|
|
Uncle Remus
Join Date: Mar 2003
Location: Lakeville Ma.
Posts: 14,773
|
Where the hell is the Lawrence? hungover?
|
"A beach is a place where a man can feel he's the only soul in the world that's real"
|
|
|
|
|
12-06-2009, 10:19 AM
|
#4
|
|
Registered User
Join Date: Sep 2003
Location: norwood pa
Posts: 166
|
Paul on the jigspook did you insert your weight side to side and then drill through it?
|
|
|
|
|
|
|
12-06-2009, 10:22 AM
|
#5
|
|
Uncle Remus
Join Date: Mar 2003
Location: Lakeville Ma.
Posts: 14,773
|
Quote:
Originally Posted by the greek
Paul on the jigspook did you insert your weight side to side and then drill through it?
|
yes and I really liked the action. It is a pretty big weight for that size plug but it is kind of a fat plug too so it is a wash. |
"A beach is a place where a man can feel he's the only soul in the world that's real"
|
|
|
|
|
12-06-2009, 04:34 PM
|
#6
|
|
Registered User
Join Date: Feb 2009
Location: Alloway NJ
Posts: 117
|
You Guys Have Been Busy

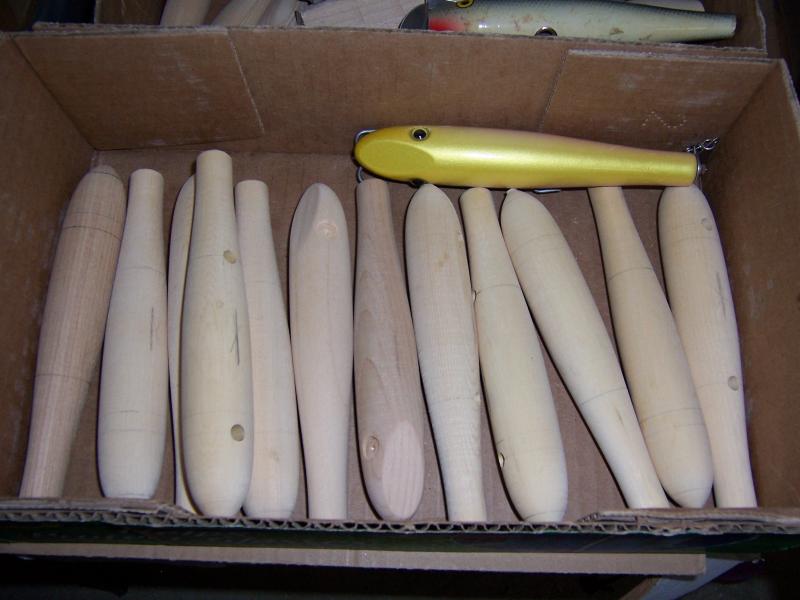

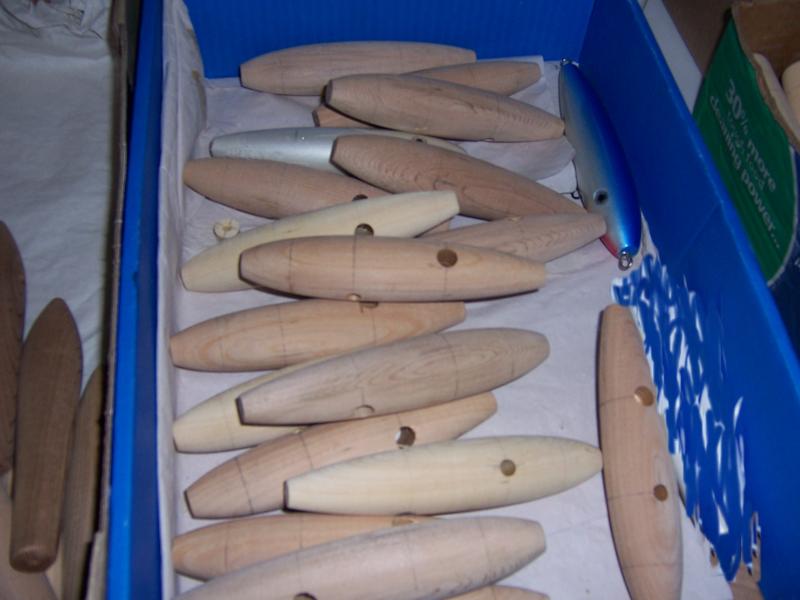

Getting some house projects out of the way but I did get to start a few.
|
|
|
|
|
|
|
12-20-2009, 07:26 AM
|
#7
|
|
Registered User
Join Date: Dec 2002
Location: North Branford,Ct.
Posts: 7,666
|
Quote:
Originally Posted by Tagger
that is very strange ... the placement of the weight below the thru wire ..
|

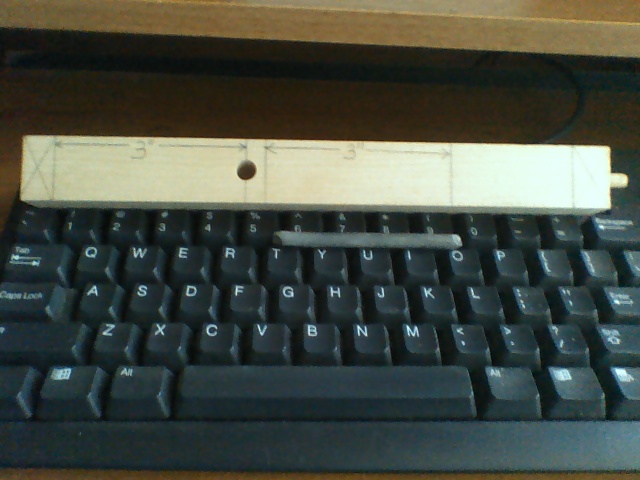

Good Morning all. I'm early. No paper yet. Got 8" snow w/ wind blown drifts up to 2" . God I hate snow. Gotta plow later. George, I've been studying the 2- A54B pixs. In the xray it looks like the wire hole is say 5/16" and the weight is on the bottom and the wire slides over the top. It doesn't seem like a double cut hole by the shadow marks. I finally got the blank template set up on the lathe. Using my plastic Atom version, I come up with 1 1/16" diameter, 5 3/8" length. The pix looks like 1 1/8" dia. like an Atom Jr w/ 5 5/8"length. Do you know what the swim characteristics were in this plug w/ just a recessed tailweight? I looks to cast better the an A-jr. |
Billy D.
|
|
|
|
|
12-20-2009, 07:32 AM
|
#8
|
|
Registered User
Join Date: Dec 2002
Location: North Branford,Ct.
Posts: 7,666
|

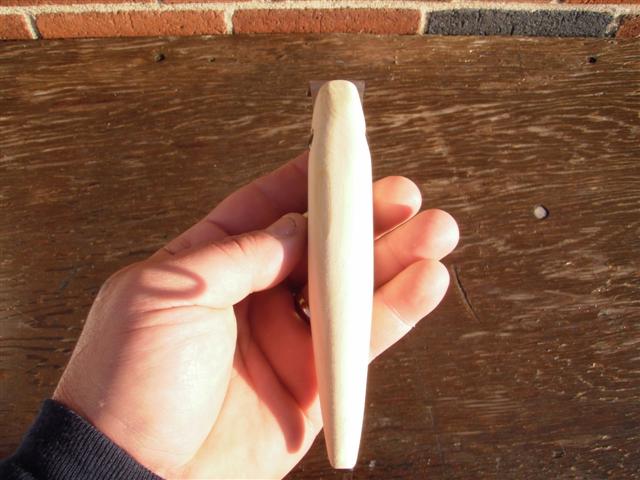

Prof M. here is the rear view of my weight placement of my belly weight Wadd. the hole 3/16" and below a 1/4" dowel plugging up the remaining hole. Put entire blank on lathe and spin away. I do go slower when I approach the dowel area.
|
Billy D.
|
|
|
|
|
12-20-2009, 07:45 AM
|
#9
|
|
BigFish Bait Co.
Join Date: Apr 2003
Location: Hanover
Posts: 23,392
|
Morning.....need coffee! Back in a few!  |
Almost time to get our fish on!!!
|
|
|
|
|
12-20-2009, 10:55 AM
|
#10
|
|
Uncle Remus
Join Date: Mar 2003
Location: Lakeville Ma.
Posts: 14,773
|
Quote:
Originally Posted by pbadad
Prof M. here is the rear view of my weight placement of my belly weight Wadd. the hole 3/16" and below a 1/4" dowel plugging up the remaining hole. Put entire blank on lathe and spin away. I do go slower when I approach the dowel area.
|
thanks for the photo. Neat idea. |
"A beach is a place where a man can feel he's the only soul in the world that's real"
|
|
|
|
|
12-25-2009, 08:31 PM
|
#11
|
|
Registered User
Join Date: Dec 2002
Location: North Branford,Ct.
Posts: 7,666
|
I went out the the harbor which was the only open water and tested a NCG setup on a 1201L and swam my version of the Atom 54B. I was impress all around. The rod casted great with the concept set up , 30,20,12,8,8,8,8,8,10tip. The Atom 54B was the other homerun. Swam down just under <1', wiggle ever so nicely. used 2/0 treble on the belly w/pennant on tail. Very nice S wiggle. Thanks for all your help George. By the way I put 11gram tailweight thru the wire. I cut a 7 gram in half and put the half and a whole one into a 17/64" hole up to the swivel hole shy of going inside the hook hole 1/16". Filled the void w/ wooden spacer. Got to get some of the roll plastic Prof. M has.
|
Billy D.
|
|
|
|
|
12-26-2009, 12:19 PM
|
#12
|
|
Registered User
Join Date: Dec 2004
Location: North Fork
Posts: 2,260
|
|
Originally Posted by Flaptail
"Throw plugs like we do that will cause them to suffer humility. Pogies make any fisherman look good when bass are around. Bait is easy."
|
|
|
|
|
12-26-2009, 12:31 PM
|
#13
|
|
BigFish Bait Co.
Join Date: Apr 2003
Location: Hanover
Posts: 23,392
|
See you guys in the am??  |
Almost time to get our fish on!!!
|
|
|
|
|
12-26-2009, 08:43 PM
|
#14
|
|
Oblivious // Grunt, Grunt Master
Join Date: Nov 2005
Location: over the hill
Posts: 6,682
|
Quote:
Originally Posted by eastendlu
|
Yes, I've known about that one for awhile. 10 1/2" and 4oz. Very doable, but I went with the BM/Pichney version last winter and barely fished them (beetch to carry). Found a picture of a Musso Eely this afternoon, however, a plug I never knew existed and one Back Beach asked me about just a week ago......2 hours later I think I've got something close. Don't have an original, but I've spent so much time copying his stuff I feel pretty confident I know how he would have gone about it. We'll see. |
|
|
|
|
|
|
12-20-2009, 09:08 AM
|
#15
|
|
Oblivious // Grunt, Grunt Master
Join Date: Nov 2005
Location: over the hill
Posts: 6,682
|
Quote:
Originally Posted by pbadad
George, I've been studying the 2- A54B pixs. In the xray it looks like the wire hole is say 5/16" and the weight is on the bottom and the wire slides over the top. It doesn't seem like a double cut hole by the shadow marks. I finally got the blank template set up on the lathe. Using my plastic Atom version, I come up with 1 1/16" diameter, 5 3/8" length. The pix looks like 1 1/8" dia. like an Atom Jr w/ 5 5/8"length. Do you know what the swim characteristics were in this plug w/ just a recessed tailweight? I looks to cast better the an A-jr.
|
The small wooden atom jr I have is 5 1/2" long and 1.18" (1 3/16' I think) wide.
The larger unfinished wood atom jr body I have is 6 1/4" long and 1.20 thick. No hook holes. The tail is .53" wide, the tail taper begins about 2 1/2" from the end and is straight over the last 2 ". The diameter at 2" from the tail is 1.17" (approx 1 1/8). The nose is quite blunt, curving over about 3/8". The plug is very tight grained white cedar. Old growth I'll bet. Nothing like the white cedar we can get now.
The smaller version (whose xray I posted) is .68" at the tail, begins it's taper a 2 1/2 ", most of which occurs after 2", but instead of straight is a hair concave. It's hooks are 1" and 3 1/2" back. The daimeter at the second hook is 1.09" (about 1 1/6).
The line tie is 5/16" below the lip slot. The lip is similar to the one Salty sells.
Last edited by numbskull; 12-20-2009 at 09:16 AM..
|
|
|
|
|
|
|
